A capillary thermostat is a mechanical temperature control where a thin tube filled with fluid or gas expands and contracts as heat changes, triggering an electrical switch at a set point. The picks below cover commercial cooktops, hot tubs, mini fridges, ovens, and DIY heating projects, so you can match the bulb length, temperature range, and amp rating to the appliance you’re fixing.
The Choices Worth Comparing
VOLLRATH 17124-1 34″ Capillary Thermostat
Invensys 275-3123-00 12in x 1/4in Spa Thermostat
showingo RF-7350-101 Refrigerator Thermostat for Haier
tooloflife 2PCS 250V 16A 50-300°C Capillary Thermostat Switch
Rannb 2pcs 50-300°C Rotary Capillary Thermostat
HydroQuip 3236-00 Spa Thermostat 5/16″ Bulb
Invensys 275-3123-00 1/4″ x 12″ Spa Thermostat
ZOKUSIK KKTB-18-48 Oven Thermostat 48″ Capillary
uxcell 1NO 1NC 50-400°C Capillary Thermostat
When a commercial cooktop starts running hot or cold, the most common culprit is a tired thermostat, and the VOLLRATH 17124-1 34″ Capillary Thermostat is a genuine OEM replacement built for that exact service call. The 34-inch capillary reach gives technicians enough slack to route the sensing bulb cleanly into a hot well, fryer, or griddle well without stretching the line tight.
Service techs working on Vollrath equipment in restaurant settings find that OEM parts like this one slide into existing mounting points, so the job stays a swap rather than a fabrication project. The build matches the original spec, which means the calibration window stays where Vollrath’s engineers set it.
Everyday Perks
- OEM part matches the original Vollrath spec, so no adapter fabrication is needed.
- 34-inch capillary reach clears most hot-well and griddle plumbing runs.
- Genuine replacement keeps the cooktop within its intended temperature calibration.
- Works as a drop-in fix for Vollrath cooking equipment in active kitchens.
Things To Consider
- Brand-specific, so it is a poor fit for non-Vollrath gear.
- Owners commonly report needing a service tech to identify the exact model match before ordering.
Who It Suits Best
Restaurant service techs and kitchen managers maintaining Vollrath hot wells, fryers, and countertop cooking lines.
Look Elsewhere When
Home cooks fixing a residential oven or water heater should reach for the tooloflife 2PCS 250V 16A 50-300°C Capillary Thermostat Switch instead, since that unit is built for general appliance duty.

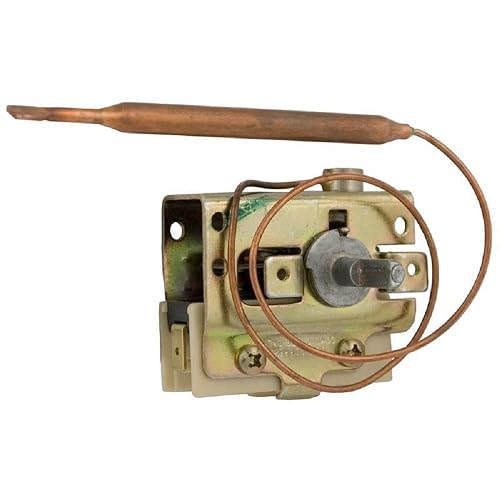

Hot tub owners with older spa packs from Allied, Len Gordon, or PresAirTrol know how frustrating a stuck-open thermostat can be, since the water either stays lukewarm or climbs past safe bathing levels. The Invensys 275-3123-00 12in x 1/4in Spa Thermostat is a mechanical SPDT (single pole, double throw) control designed to slot into those legacy control boxes and restore dependable heat regulation.
The factory-set point can be adjusted to match your preferred tub temperature, and the 12-inch copper capillary with a slim 1/4-inch bulb threads into a thermowell (not included) at the heater outlet. You may find the install straightforward if you have already worked inside a spa control cabinet before, though a dry well is recommended for the most accurate readings.
Noteworthy Benefits
- SPDT switch design handles 25A loads common in spa heater circuits.
- Factory-set but adjustable dial lets you tune to your preferred water temperature.
- Direct fit for older Allied, Len Gordon, and PresAirTrol spa packs.
- Copper capillary bulb reads accurately inside a thermowell.
Trade Offs
- Thermowell is not included, so plan to source that separately.
- The 12-inch reach may feel short in larger spa packs with cabinets mounted away from the heater.
Made For
DIY hot tub owners and spa techs retrofitting legacy spa packs that originally shipped with an Invensys 275-3123 control.
Where Another Pick Suits Better
If your spa needs a longer 18-inch reach and a thicker sensing bulb, the HydroQuip 3236-00 Spa Thermostat 5/16″ Bulb is a more comfortable fit.

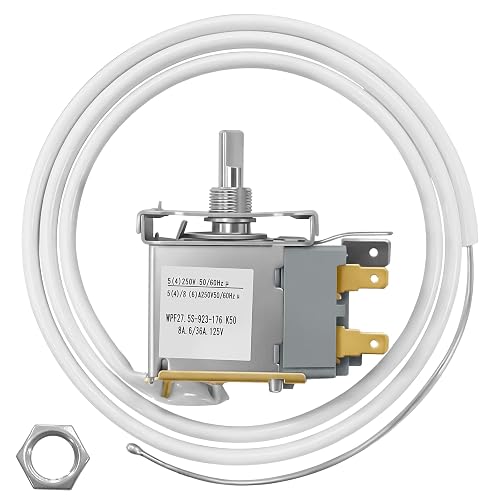

Apartment dwellers, dorm residents, and garage-bar owners who rely on a compact Haier-style mini fridge know the panic of a unit that stops cooling because the capillary thermostat has failed. The showingo RF-7350-101 Refrigerator Thermostat for Haier is built as a direct OEM-style replacement for the RF-7350-101 and WPF27.5S-923 controls found across a long list of Haier, Midea, Insignia, Arctic King, and Vissani compact refrigerators and chest freezers.
Coverage spans dozens of matching models, so the swap is more about pulling the failed part and matching numbers than fabricating a solution. For most people with a common compact fridge, that’s enough to get the cooling cycle back on track without a service call.
Practical Pluses
- Covers a long cross-brand list of compact fridges and chest freezers.
- Direct OEM-style fit for Haier RF-7350-101 and WPF27.5S-923 controls.
- Restores proper cooling cycles without reprogramming electronics.
- Useful for property managers maintaining several mini fridges at once.
Worth Noting
- Model matching is critical, so always cross-check your fridge’s part number before ordering.
Best Suited To
Anyone repairing a Haier, Midea, Insignia, Arctic King, or Vissani compact fridge whose existing thermostat has failed.
Skip It When
Homeowners fixing a gas range should skip ahead to the ZOKUSIK KKTB-18-48 Oven Thermostat 48″ Capillary, which targets oven cavities instead of fridge lines.

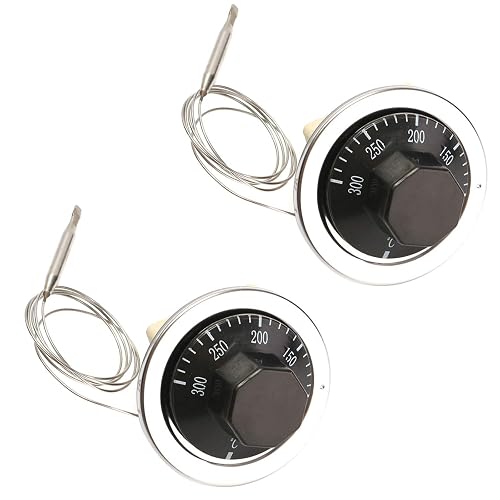

Workshop tinkerers and appliance rebuilders tend to need a thermostat they can drop into ovens, water heaters, or frying pans without hunting for a brand-specific part, and the tooloflife 2PCS 250V 16A 50-300°C Capillary Thermostat Switch is built for exactly that flexibility. The adjustable range covers 50°C to 300°C (122°F to 572°F), which spans most home and light commercial heating projects.
Two switches arrive per pack, so the second unit is handy as a backup or for a separate project running in parallel. The metal, ceramic, and plastic construction is rated for over 100,000 cycles, and the 250V/16A contact rating handles the typical loads found in countertop ovens and small water heaters.
What Stands Out
- Dual-pack format covers a current project and a future repair.
- Wide 50-300°C adjustable range suits ovens, fryers, and water heaters.
- 100,000+ cycle life rating points to long service in frequently used appliances.
- 250V/16A contact capacity handles most household heating loads.
Honest Caveats
- Universal fit means calibration must be checked against your specific appliance’s spec.
- Wiring knowledge is required, so it is less suited to first-time installers.
Key Specs
Who Will Love This
DIYers and appliance rebuilders who want a flexible, general-purpose capillary switch for home repair and small commercial projects.
A Better Fit Elsewhere
Anyone needing a 50-400°C range for boilers or higher-heat builds should look at the uxcell 1NO 1NC 50-400°C Capillary Thermostat instead.

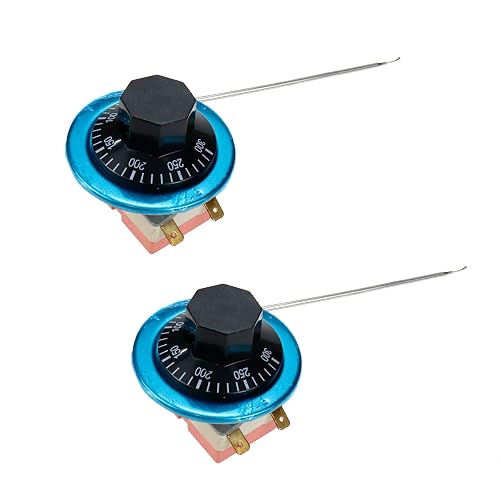

Budget-minded hobbyists fixing a water boiler, a warm-air heater, or a small countertop oven often need a basic control that simply works, and the Rannb 2pcs 50-300°C Rotary Capillary Thermostat fits that brief. The rotary dial adjusts setpoint from 50°C to 300°C, and a 6mm probe with a 130mm insertion length reaches into most standard heater cavities.
Two pin terminals make the wiring straightforward for anyone who has hooked up a thermostat before, and the 16A/250V rating covers typical small appliance loads. For a single repair, you have a spare ready to go.
Notable Upsides
- Two-pin connection simplifies wiring for first-time installers.
- Rotary dial allows quick on-the-fly setpoint changes.
- Comes as a two-pack for backup or parallel projects.
- Probe dimensions fit common water heater and oven ports.
Points To Keep In Mind
- Lower amp rating than some competitors, so it is less suited to heavy commercial loads.
- Documentation is light, so verifying wire pinout before install is wise.
The Right Fit
Home repair hobbyists looking for a low-cost capillary thermostat for small ovens, water boilers, and warm-air heaters.
Reach For A Different Pick When
Owners working on commercial Vollrath equipment should stay with the VOLLRATH 17124-1 34″ Capillary Thermostat for proper OEM fit.
Larger spa heaters and hydronic systems need a thermostat with a beefier sensing bulb and longer reach, which is exactly where the HydroQuip 3236-00 Spa Thermostat 5/16″ Bulb earns its place. The 5/16-inch bulb and 18-inch plastic-coated capillary handle higher-volume water systems where a slimmer 1/4-inch probe would be marginal.
Mounting holes sit 1 5/16 inches apart on center, matching common spa panel layouts, and copper conductors are recommended for the wiring runs. Depending on your cabinet layout, the longer reach clears heater plumbing that shorter thermostats cannot bridge.
What Makes Sense
- 18-inch capillary reach covers larger spa cabinets and heater offsets.
- 5/16-inch bulb reads accurately in higher-volume water flow.
- Plastic-coated capillary resists corrosion in humid spa environments.
- Direct cross-reference to Eaton Mears 275-3263-00 specs.
Factors To Consider
- Spec calls for copper conductors only, so aluminum wiring needs an adapter.
- Heavier construction means the install takes more cabinet space.
Key Specs
Perfect Match For
Hot tub owners and spa techs working on larger spa packs that need a longer reach and a heavier sensing bulb.
Not Your Match When
Compact spa cabinets that fit comfortably with the Invensys 275-3123-00 1/4″ x 12″ Spa Thermostat’s 12-inch reach are better served by that smaller unit.

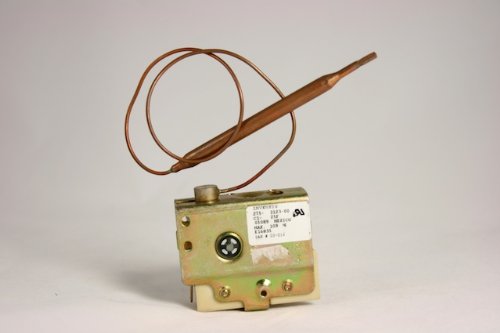

Older spa packs from Eaton, HydroQuip, and similar brands often rely on a single-pole thermostat that has been in production for decades, and the Invensys 275-3123-00 1/4″ x 12″ Spa Thermostat is that workhorse. The single-pole, single-throw (SPST) design rated at 25 amps handles the typical resistive load of an electric spa heater without complaint.
Max temperature tops out at 107°F, which is the right zone for most residential hot tubs, and the 1/4-inch bulb slips into a dry well or groove tube at the heater outlet. Owners commonly report that installing the bulb in a dry well gives the cleanest reading, so plan a small mounting bracket if your heater does not have one.
The Practical Payoff
- 25A single-pole rating matches standard electric spa heater loads.
- Time-tested design used across many older spa pack models.
- 107°F max setpoint suits residential bathing temperatures.
- Dry well installation produces clean, repeatable readings.
Worth Bearing In Mind
- Dry well or groove tube is recommended for accuracy, and is not included.
- SPST design lacks the SPDT switching flexibility of the larger Invensys 275-3123 unit.
Best Suited To
Spa owners and service techs replacing the original thermostat in an older HydroQuip or Eaton spa pack where an SPST 25A control is correct.
Swap It Out When
Hot tub owners needing a longer 18-inch reach and a heavier 5/16-inch bulb should pick the HydroQuip 3236-00 Spa Thermostat 5/16″ Bulb instead.
Home cooks with a 30-, 36-, or 48-inch pro-style gas range know how disruptive a failed oven thermostat is, since every bake drifts off target until the part is replaced. The ZOKUSIK KKTB-18-48 Oven Thermostat 48″ Capillary is built as a direct replacement for the Robertshaw KKTB-18-48, supporting both bake and broil functions in 18-inch oven cavities.
The 599°F max setpoint covers the high-heat range that pro-style ranges reach, and the design is compatible with brands like Awoco, Forno, and Thor across their common configurations. The 48-inch capillary reach is generous, so routing through the back of a range is more forgiving than shorter probes.
The Case For It
- Direct replacement for Robertshaw KKTB-18-48 oven thermostats.
- 599°F max range covers pro-style gas oven temperatures.
- 48-inch capillary reach clears the back panels of large ranges.
- Cross-brand compatibility with Awoco, Forno, and Thor units.
Things To Weigh Up
- Not compatible with 12-inch oven cavity models, so confirm your oven size first.
- Pro-style range repair often requires pulling the unit from the cabinet.
Key Specs
Whose Shelf It Belongs On
Homeowners and appliance techs servicing Awoco, Forno, or Thor gas ranges with 18-inch oven cavities that need a Robertshaw-style swap.
Consider Something Else When
Compact countertop oven repairs are better handled by the tooloflife 2PCS 250V 16A 50-300°C Capillary Thermostat Switch, which fits smaller appliance housings.

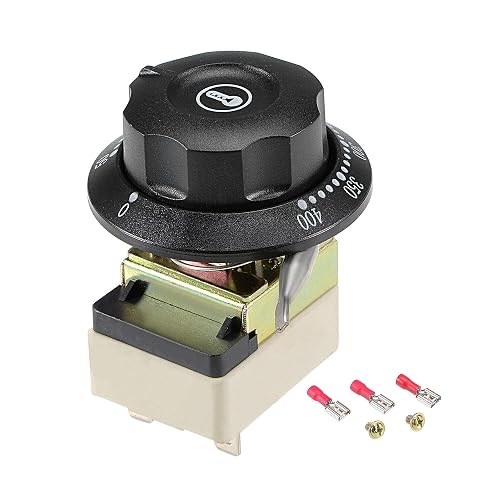

Lab equipment, industrial boilers, and high-heat fryers all push past the 300°C ceiling of typical household capillary thermostats, which is where the uxcell 1NO 1NC 50-400°C Capillary Thermostat earns its slot. The 50°C to 400°C operating window covers everything from beverage chillers up to commercial oven and boiler setpoints.
Three terminals and a 1NO/1NC (one normally open, one normally closed) contact arrangement give you more wiring flexibility than a basic two-pin rotary, and the 16A/250V rating fits typical appliance and light industrial loads. The compact 6mm probe and 0.7-meter lead fit most equipment panels.
Features That Help
- 50-400°C range handles boilers, fryers, and high-temp lab gear.
- 1NO/1NC contact arrangement offers more wiring options than basic switches.
- Three-terminal design suits both simple and complex control circuits.
- Compact 6mm probe fits tight equipment panels.
Some Limits To Know
- Documentation is minimal, so cross-check terminal layout before wiring.
- 0.7-meter lead length can feel short in larger equipment cabinets.
Right Fit For
Maintenance techs and lab operators who need a wide-range capillary control for boilers, fryers, beverage equipment, or radiator heaters.
Where A Sibling Pick Shines
Home oven repairs in the 50-300°C range are more economically handled by the Rannb 2pcs 50-300°C Rotary Capillary Thermostat.
What Matters Most Before Choosing Capillary Thermostats
Match The Bulb Size To The Application
Capillary thermostats use a sensing bulb that physically reads the temperature of the surrounding air or water. Slim 1/4-inch bulbs fit into tight thermowells in spa packs and mini fridges, while thicker 5/16-inch bulbs read more accurately in high-volume water flow. Choosing the wrong bulb diameter often leads to sluggish or inaccurate temperature swings.
Spa repairs typically call for 1/4-inch or 5/16-inch bulbs in copper, while household appliances accept the slimmer probes. For most residential fixes, the slim profile is enough; larger commercial or hydronic systems benefit from the heavier bulb.
Check Capillary Length Against Cabinet Geometry
The capillary tube is the thin armored line that carries fluid between the bulb and the switch body. Spa packs with heater plumbing tucked at the back of a cabinet need 18 inches or more, while compact cooktop controls can work with 12 inches or shorter.
For most residential hot tubs and ovens, a 12- to 18-inch reach is comfortable. Pro-style gas ranges with rear-mounted control boards generally need 48 inches of capillary to route cleanly without sharp bends.
Confirm The Electrical Rating Matches The Load
Voltage and amperage ratings tell you how much switching current the thermostat can handle. Spa heaters commonly draw around 25 amps on a 240V circuit, so a 25A SPST or SPDT control is appropriate. Countertop ovens and small water heaters usually sit well under 16A at 250V.
Assuming a standard household circuit, a 16A/250V switch covers most small appliance repairs. For commercial or high-draw heaters, a 25A spa-rated thermostat is the safer call.
Decide Between OEM And Universal
OEM parts like the VOLLRATH 17124-1 or the ZOKUSIK KKTB-18-48 swap directly into specific equipment with no fabrication, which is the path of least resistance for service calls. Universal capillary switches like the tooloflife or uxcell units give you flexibility across projects, but they need a careful install.
For one-off repairs on a known appliance, OEM is the comfortable choice. For a workshop shelf or a multi-project home, a universal two-pack is more practical.
Smart Choices Across These Picks
Common Shopping Slip Ups
One of the most common mistakes is buying a thermostat based on temperature range without checking the electrical rating, and that mismatch can show up as a switch that welds shut the first time the heater cycles. Always match voltage and amperage to the appliance’s spec sheet before you order.
Another slip is ignoring capillary length. A 12-inch probe stretched across an 18-inch cabinet gap creates a tight, kink-prone run that fails early. Measure the route from the bulb location to the switch mount and pick a reach that fits without strain.
Where The Extra Money Goes
Higher-tier picks like the VOLLRATH OEM and the ZOKUSIK Robertshaw replacement cost more because they ship as direct-fit parts with the original manufacturer’s tolerances. That means a calibration window the engineers actually designed for, and fewer surprises during install.
Paying up makes the most sense when you are repairing a single high-value appliance where a miscalibrated universal switch would mean a second service call. For a workshop shelf where tolerances can be dialed in by hand, a budget rotary or universal two-pack is the more practical call.
Frequently Asked Questions
What Is A Capillary Thermostat Used For?
A capillary thermostat is a mechanical temperature switch that uses a fluid-filled sensing bulb and thin tube to trigger on or off at a set point. Common uses include hot tub heaters, ovens, cooktops, mini fridges, and water heaters.
How Do I Know Which Capillary Length I Need?
Measure the distance from where the sensing bulb will sit to the switch body inside the cabinet, then add a few extra inches of slack. Bulb mounts in compact appliances usually work with 12 inches, while spa packs and pro ranges often need 18 to 48 inches.
Can I Replace A Capillary Thermostat Myself?
Homeowners comfortable with basic electrical work can swap a capillary thermostat, but the appliance must be powered off and the wiring matched exactly. For gas ovens, hot tubs, or commercial equipment, a licensed technician is the safer route.
Are Universal Capillary Switches As Reliable As OEM Parts?
Universal switches can perform well when their electrical rating and temperature range match the appliance, though OEM parts tend to keep the original calibration. The right call depends on whether you value direct fit or shelf flexibility.
What Causes A Capillary Thermostat To Fail?
The most common failure modes are a stuck switch contact, a leak in the capillary tube, or a deformed sensing bulb. Heat cycling, corrosion, and physical damage during service are widely reported contributors over the life of the part.
Bottom Line
The right capillary thermostat is the one that matches your appliance’s electrical load, temperature range, and physical layout, so start with the part number or spec sheet rather than the shelf. Commercial cooks, spa owners, and oven repair techs each have a clear path through this list, and the universal options cover everything else.
