Johnson Controls pneumatic thermostats still run a surprising share of commercial HVAC systems, from older office floors to hospital wings and light-industrial shops. Picking the right unit matters more than it looks at first, because these controls govern valves and damper actuators with compressed air rather than electricity, and a small compatibility miss can throw off an entire zone. The eight options below cover the core categories you’ll run into: legacy pneumatic thermostats, sensing components, freezer controllers, and a couple of marine engine thermostats that share the Johnson brand name but solve a totally different problem. Each pick was chosen for a specific reason, and the buying guide that follows it breaks down how to narrow the field for your own setup.
How The Shortlist Stacks Up
Johnson Controls T4002-201 Single Temperature Thermostat
Johnson Controls A99BB-200C Temperature Sensor
Johnson Controls A19AAT-2C Freezer Temperature Controller
Johnson Controls A419ABC-1C Electronic Thermostat
Johnson Controls A421ABC-03C Electronic Temperature Control
GLM Thermostat & Cover Kit for Johnson Evinrude V4 & V6
HIMARKLIF Thermostat with Gasket for Johnson Evinrude 5-235 HP
Johnson Controls A421ABG-02C Electronic Temperature Control

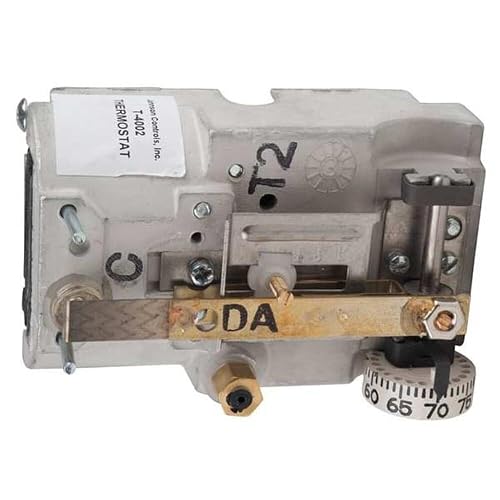

The T4002-201 sits at the heart of the Johnson Controls pneumatic lineup, a horizontal-mount, direct-acting room thermostat designed for older two-pipe air systems. The “two-pipe chassis” means it connects to a compressed air supply and a signal line that talks to a damper or valve actuator downstream. Compared to the A421 electronic controls that appear later in this list, this unit works without any electrical wiring, which is exactly the point for buildings still running analog air networks.
You typically see it on retrofit jobs where ripping out a working pneumatic loop for a digital system would cost more than the building budget allows. The horizontal mounting also makes it easier to install in shallow wall cavities common to mid-century commercial construction.
A Few Strong Suits
- High-volume pneumatic output handles large damper loads without a booster relay
- Direct-acting design simplifies setpoint calibration for service techs
- Horizontal mount fits shallow wall boxes in older commercial builds
- Drops into existing two-pipe Johnson Controls air systems without re-plumbing
Trade Offs
- Chassis-only configuration means you may need a separate cover and setpoint dial kit
- Requires a clean, dry compressed air supply, so a contaminated air line will throw off calibration over time
- Documentation lives in the T-4000 Series product bulletin, which service techs may need to source separately
Feature Snapshot
Who It Suits Best
Facility maintenance teams and HVAC contractors working on commercial pneumatic retrofits where a simple, proven room thermostat is needed.
Where Another Pick Suits Better
The Johnson Controls A421ABC-03C is the better fit for new installations that need a digital readout, anti-short cycle timing, and a touchpad interface.

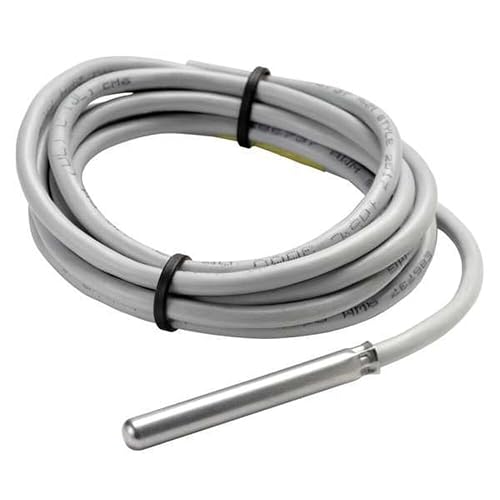

The A99BB-200C is a temperature-sensing element rather than a full control, which makes it the kind of part you reach for when a downstream controller needs a more accurate probe. The A99 series uses a silicon-based sensing element that varies resistance with temperature, and that signal feeds into a separate control module. Pair it with a control box like the A421 series covered below, and you’ve got a wide-range sensing system that works in harsh spaces where the controller itself would not survive.
For rooftop units, walk-in coolers, and mechanical rooms with limited clearance, a remote sensor like this lets you mount the brain in a protected spot while placing the probe right in the airstream. It is a much more flexible approach than running long cable runs from a built-in sensor.
Real Benefits
- Remote sensing keeps the actual control electronics out of harsh airstreams and high-moisture zones
- Silicon sensing element tracks temperature changes with a smooth resistance curve
- Standard A99 footprint drops into many legacy Johnson Controls sensor wells
Points To Note
- Sensor only, so a compatible control module is required for full operation
- Wiring polarity and resistance values must match the host controller’s input range
- Owners commonly report that the probe lead length limits where the control box can be mounted
Feature Snapshot
Right Fit For
Technicians replacing a worn or failed probe in an existing Johnson Controls sensing circuit where the control module is still in good shape.
Look Elsewhere When
You want a self-contained control with a display, in which case the Johnson Controls A421ABC-03C handles the display and decision logic in one box.
The A19AAT-2C is one of those controls that has barely changed in decades, and there is a reason. It runs on a gas-filled bulb connected by a 6-foot capillary tube, no electronics, no firmware, no menus. The bulb senses temperature, the gas pressure changes, and that mechanical shift opens or closes a switch.
That simplicity makes it a favorite for converting a chest freezer into a keg refrigerator, where hobbyists want a reliable 20 to 80 °F range and could not care less about a digital display. Compared to the A421 electronic controls above, this unit costs less up front and has nothing to reprogram if power blips.
The Case For It
- Mechanical design keeps the control working through voltage spikes and dirty power
- Wide setpoint range suits both freezer and refrigerator conversion projects
- 6-foot capillary gives flexibility on probe placement in tight chest freezer lids
- No programming interface to learn, so first-time installers can wire it quickly
Soft Spots
- Cooling-only operation means it cannot drive a heating circuit on its own
- Capillary tube can be damaged if kinked or pinched during installation
- Setpoint accuracy drifts over years as the gas charge slowly loses pressure
Best Suited To
Homebrewers and small-shop owners converting a chest freezer into a kegerator or fermentation chamber.
Skip It When
You need both heating and cooling control, where the Johnson Controls A419ABC-1C covers both modes in a single electronic unit.

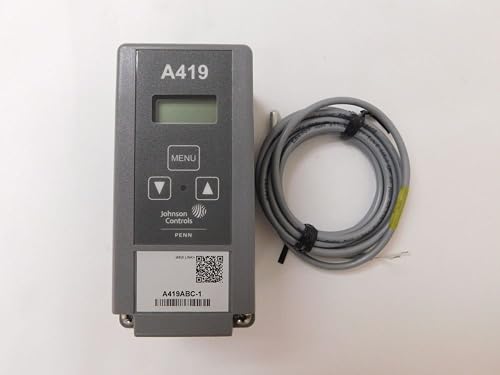

The A419ABC-1C is a single-stage electronic temperature control, a step up from the purely mechanical A19 freezer controller covered above. It uses an LCD for setpoint viewing and a lockable front-panel touchpad so a building manager can prevent tenants or curious hands from walking the temperature up or down. A single-pole, double-throw (SPDT) output relay means one common terminal can switch either a heating or a cooling load, depending on how the installer wires it.
The 1/4-inch by 2-inch remote bulb probe and the wide -30 to 212 °F range make this unit useful in applications far beyond room comfort, including greenhouse vents, mechanical room freeze protection, and small commercial refrigeration.
Where It Delivers
- Heating and cooling modes in a single device reduce the parts list on a dual-mode install
- Lockable touchpad keeps the setpoint stable in public or tenant spaces
- LED status indicator gives a quick visual check of the relay state during service
- Remote bulb design lets the probe sit in the controlled medium while the display stays in a service-friendly spot
Honest Caveats
- Single-stage output means it cannot stage multiple heaters or compressors on its own
- Programming menus require reading the manual the first time, so setup is not as quick as the mechanical A19AAT-2C
Feature Snapshot
Who Will Love This
Building engineers and small refrigeration techs who want one control that can handle either heating or cooling on the fly.
A Better Fit Elsewhere
You need adjustable backlight brightness and a brighter LCD, in which case the Johnson Controls A421ABC-03C is the next step up.

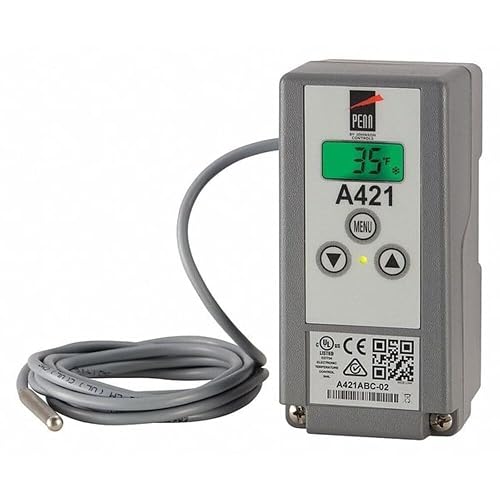

The A421ABC-03C is the modern face of the Johnson Controls single-stage lineup, and the first place many service techs look when an A419 series control needs replacing. The bright, adjustable backlit LCD is the biggest visible upgrade, and it makes a real difference in mechanical rooms with poor lighting. The three-button touchpad drives both a basic menu for setpoints and an advanced menu for things like anti-short cycle delay and sensor offset.
Anti-short cycle delay is worth pausing on, because it prevents a compressor from rapid-cycling on and off, which is one of the most common ways refrigeration gear fails early. The A421 builds that protection in by default, and it is the kind of thing a homeowner never thinks about but a service tech always does.
Where It Helps
- Backlit LCD with adjustable brightness improves readability in dim equipment rooms
- Built-in anti-short cycle delay protects compressors from rapid on-off cycling
- Three-button touchpad supports both basic and advanced menus without an external programmer
- Adjustable on and off setpoints suit either heating or cooling loads on a single SPDT relay
Small Caveats
- Advanced features take a careful read of the manual, so first-time setup is slower than the A19 mechanical option
- Requires a clean 24 V power source for stable operation
Feature Snapshot
Perfect Match For
Service contractors and facilities teams who want a programmable single-stage control with anti-short cycle protection built in.
Not Your Match When
You specifically need a pre-wired power cord for a quicker install, in which case the Johnson Controls A421ABG-02C ships ready to plug in.

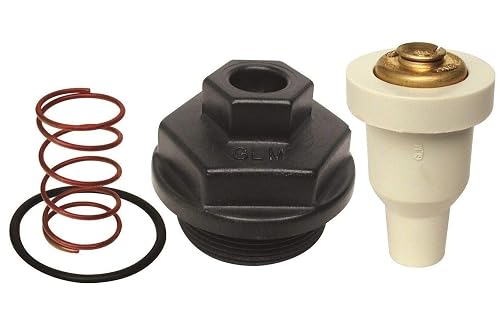

Stepping away from HVAC for a moment, the GLM Thermostat and Cover Kit solves a totally different problem: it regulates coolant flow in Johnson and Evinrude outboard engines. The kit replaces OMC part numbers 0435597 and 435597, and it fits V4 90 and 115 hp engines from 1995 through 2006, along with V6 150 and 175 hp motors from 1991 through 2006, all in the 60-degree cylinder configuration.
It is worth flagging that “thermostat” here means the engine cooling thermostat, not a room thermostat. Boaters shopping for a room control may land on this listing by accident, but for anyone working on an outboard cooling system, the kit is genuinely useful because it includes the cover, O-ring, and spring rather than just the thermostat element.
Reasons It Performs
- Complete kit includes the thermostat, cover, O-ring, and spring in one package
- Direct replacement for OMC part numbers 0435597 and 435597, so cross-referencing is simple
- GLM part number 13330 makes reordering straightforward for service shops
Where It Is Less Suited
- Fits a narrow engine range, so it is not a universal marine thermostat option
- Does not cover the broader 5 to 235 hp range that the HIMARKLIF thermostat covers below
Feature Snapshot
Built With In Mind
Outboard mechanics and DIY boat owners servicing a 60-degree V4 or V6 Johnson or Evinrude from the early to mid-2000s.
Another Choice May Suit
You are working on a wider horsepower range from 5 to 235 hp, in which case the HIMARKLIF thermostat with gasket covers a much broader set of replacement numbers.

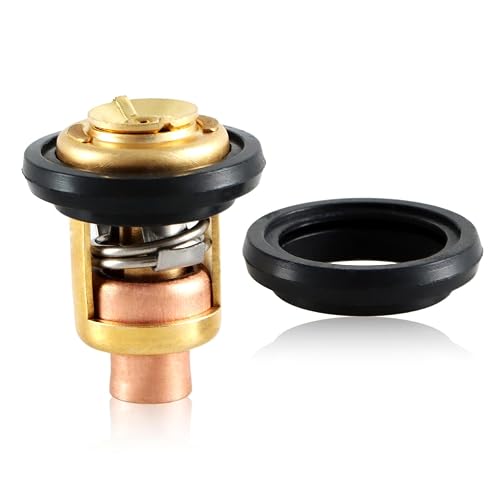

The HIMARKLIF thermostat covers a much wider swath of Johnson and Evinrude outboards, from 5 hp all the way up to 235 hp. The body combines stainless steel and copper for thermal conductivity, and the central gasket uses NBR rubber (nitrile butadiene rubber), a material that holds up to engine heat, oil exposure, and the corrosive effects of salt water far better than generic paper gaskets.
The replacement cross-reference list is generous too. It covers OEM numbers 5005440, 8330720, 777260, 0377148, 393659, 434841, 378065, 59434841, and 508626, so a service shop can stock a single SKU instead of juggling nine different part numbers. Compared to the GLM kit above, this is the better pick when horsepower coverage matters more than getting the cover and spring in one box.
Good Reasons To Consider
- Stainless steel and copper body resists corrosion in saltwater environments
- NBR gasket is thicker than typical replacements, improving the seal under heat cycling
- Covers 5 to 235 hp motors with nine OEM cross-reference numbers in one SKU
Things To Weigh
- Does not include a cover or spring, so you may need to reuse existing hardware or source separately
- Aftermarket brand, so fitment on a specific motor should be confirmed against the cross-reference list before ordering
Whose Shelf It Belongs On
Service shops and outboard owners who want one thermostat SKU that covers most Johnson and Evinrude applications in stock rotation.
Reach For A Different Pick When
You specifically need a complete kit with cover and O-ring for a V4 or V6 60-degree motor, where the GLM Thermostat and Cover Kit bundles everything.

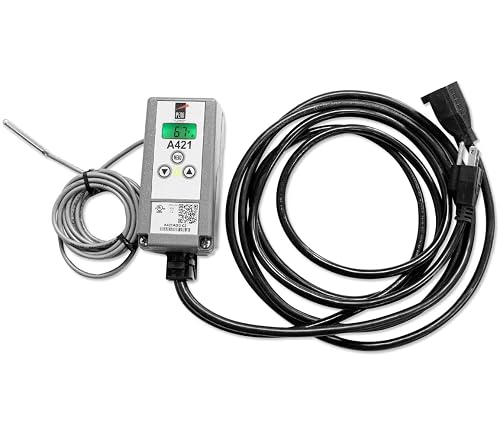

The A421ABG-02C is the “ABG” variant of the A421 series covered earlier, and the main difference shows up the moment you open the box: it ships with a pre-wired power cord. For installers working on walk-in coolers, rooftop units, and replacement jobs in tight electrical closets, that pre-wired cord is the difference between a 15-minute swap and a half-day of fishing wires through conduit.
The -40 to 212 °F temperature range also nudges this model into harsher applications than the basic A421ABC-03C, including freezer rooms and outdoor equipment shelters where the controller has to survive deep cold during off cycles.
What Makes Sense
- Pre-wired power cord reduces installation time and eliminates a common wiring error source
- -40 to 212 °F range handles freezer rooms and outdoor enclosures
- Same A421 touchpad and LCD interface as the ABC variant, so service techs face no learning curve
Worth Noting
- Pre-wired cord limits placement flexibility compared to a hardwired model with knockouts
- Slightly higher cost than the ABC-03C reflects the convenience, so the upgrade only pays off when install time matters
Feature Snapshot
Made For
Service contractors doing walk-in cooler or rooftop unit retrofits where every minute of install time matters and the controller sits in a hard-to-reach spot.
Swap It Out When
You prefer hardwired conduit terminations, in which case the Johnson Controls A421ABC-03C offers standard wiring flexibility.
## Picking The Right Johnson Controls Pneumatic Thermostat For Your System Start with the system type, not the brand. If the building still runs a compressed-air pneumatic loop, a true pneumatic room thermostat like the T4002-201 is the right starting point. If the air loop has already been replaced by a 24 V control circuit, you are shopping in the A419 and A421 family instead. Mixing the two is a common mistake, and no amount of clever wiring makes a 24 V control drive a pneumatic actuator. For sensing-only jobs where a probe feeds a separate controller, the A99BB-200C sensor drops into many existing Johnson Controls wells. For cooling-only mechanical jobs like kegerator conversions, the A19AAT-2C is the simpler path. ### Match The Output To The Load Single-stage controls work well for most small commercial heating and cooling loads. An SPDT (single-pole double-throw) relay, which routes one input to either of two outputs, lets the same controller switch heating or cooling depending on how the installer wires the terminals. If you need staging, where multiple compressors or heaters cycle in sequence, look beyond the single-stage A419 and A421 units toward multi-stage controls. For engine applications, the matching question is cross-reference. The GLM kit is the right pick for 60-degree V4 and V6 motors from 1991 to 2006, while the HIMARKLIF thermostat covers 5 to 235 hp with a much broader list of OEM numbers. Picking the wrong one is mostly a matter of forgetting to check the part number stamped on the original component. ### Decide Between Mechanical And Electronic Mechanical controls like the A19AAT-2C survive voltage spikes, dirty power, and years of neglect with no firmware to corrupt. Electronic controls like the A421 series offer better accuracy, a backlit display, and built-in anti-short cycle delay (a pause that prevents the compressor from restarting too soon after shutting off), which can extend compressor life in refrigeration applications. The honest trade-off is that mechanical units are simpler to install and cheaper, while electronic units are more accurate over time and easier to calibrate. ### Plan For Installation And Service Access The pre-wired A421ABG-02C saves real time on a service truck, but it locks the controller to a location near an outlet. Hardwired A421ABC-03C units give more placement freedom but require more careful electrical work. For tight mechanical rooms or rooftop installations, the pre-wired cord can easily justify the small premium. ## Key Considerations Across These Picks ### Pitfalls Shoppers Hit The most common mistake in this category is buying a control that does not match the existing system voltage and air supply. A pneumatic thermostat cannot run on a 24 V circuit, and an electronic A421 cannot drive a pneumatic damper actuator without a separate electric-to-pneumatic relay. Cross-reference the existing part number, the supply type, and the load type before ordering. The next trap is overlooking the probe. Remote bulb thermostats like the A419ABC-1C depend on a 1/4-inch by 2-inch probe in the right location, and a probe that sits in a dead air spot will give readings that do not match the rest of the room. Mount the bulb in a representative spot and let the capillary tube take the strain. ### When Paying More Pays Off Higher-tier A421 controls earn their premium through anti-short cycle delay, adjustable LCD brightness, and a touchpad that supports both basic and advanced menus. For a refrigeration compressor that runs thousands of cycles per year, the anti-short cycle protection alone can pay for the upgrade in extended equipment life. The pre-wired A421ABG-02C earns its premium through install speed, which matters most on service calls billed by the hour. ## Frequently Asked Questions ### What Is A Pneumatic Thermostat? A pneumatic thermostat uses compressed air instead of electricity to control HVAC equipment, regulating air pressure sent to a valve or damper actuator. It is common in older commercial buildings where running low-voltage control wiring would be more invasive than tapping into the existing air network. ### Can I Replace A Pneumatic Thermostat With An Electronic One? Yes, but you will need an electric-to-pneumatic transducer, a device that converts a voltage signal into a proportional air pressure output, so the electronic controller can still drive the pneumatic actuator. The A421 series works well as the electronic side of that conversion. ### How Wide Is The Temperature Range On The A421 Series? The A421ABG-02C model covers -40 to 212 °F, which makes it suitable for freezer rooms and high-heat applications. The standard A421ABC-03C covers a narrower but still useful range for typical commercial heating and cooling jobs. ### Do These Thermostats Need A Separate Power Supply? Electronic models like the A419 and A421 series need 24 V power from a dedicated transformer. Pneumatic models like the T4002-201 need clean, dry compressed air at the proper supply pressure. Mechanical models like the A19AAT-2C need neither. ### Are Johnson Evinrude Marine Thermostats Compatible With All Outboard Motors? No, the GLM kit fits specific 60-degree V4 and V6 Johnson and Evinrude motors from 1991 to 2006, and the HIMARKLIF unit covers 5 to 235 hp models using its listed OEM cross-references. Always match the replacement part number to the original component before ordering. ## Wrap Up The right Johnson Controls thermostat depends almost entirely on the system it is talking to. For legacy pneumatic loops, the T4002-201 keeps the air network honest. For modern commercial refrigeration, the A421 series gives you the display, the anti-short cycle delay, and the install speed that service work demands. The marine thermostats at the bottom of this list solve a completely different cooling problem, and the only brand overlap is the Johnson name. Match the part number, match the supply type, and the rest tends to fall into place.
